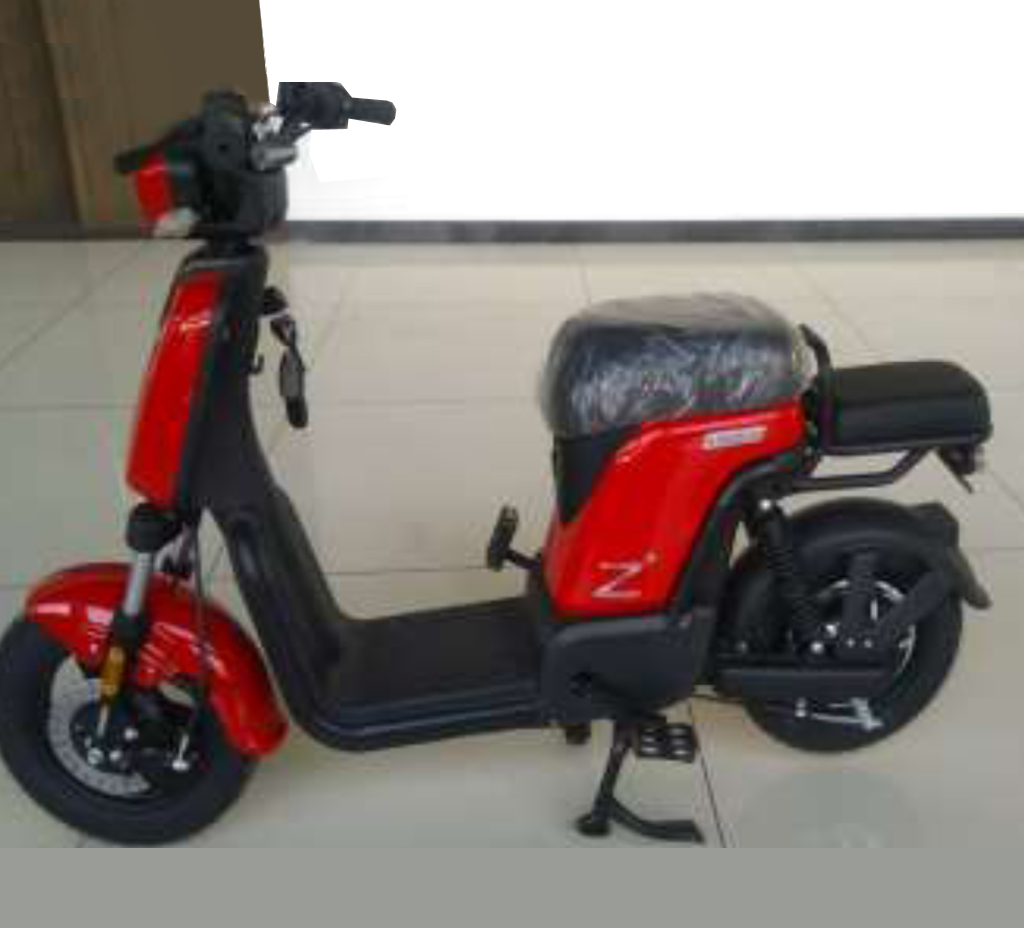

E-Scooter SUPER ECO Z+

If you are searching for Electric scooters in India then A K AUTTO ELECTRICAL is the right place for you.

KEY FEATURES OF E-SCOOTER
SUPER ECO Z+

MODEL NAME	SUPER ECO Z+
CARRYING CAPACITY	130 Kg Including Driver
DRIVING RANGE	70-80 Km
MIN. TURNING RADIUS	1<=M
STANDARD COLOR	As per choice
MAX SPEED	Max. 25 Km/ Per Hr.
CLIMBING CAPACITY	7%
BRAKING DISTANCE	2.8mm

Super Eco Z+

Photo Gallery

Key Features

CONTROLLER	FOC ADVANCE , 23 Amp & 12 Tube Controller
MOTOR	550 W Hub Motor BLDC
BATTERY	LITHIUM ION 60 V, 21 AH, And (33 Ah Battery Optional)
CHARGER	4-6HRS ON STANDERED 5A CHARGER

PERFORMANCE

PASSENGER CAPACITY	2 PERSON
RANGE (LOADED) (KM)* in Ideal Condition	70-80 km/charge and (100-105 km per charge optional)
MAX. SPEED (KM/H)	UP TO 35KM/H
MIN. TURNING RADIUS(M)	1<=M
MAX. CLIMBING ABILITY (M)	UP TO 7%
BRAKING DISTANCE	2.8mm
MAX. LOADING WEIGHT (KGS)	130 KG
CHARGING TIME (HOUR)	5 hours

STEERING & SUSPENSION

BRAKE SYSTEM	Front: DISC, Rear: Drum
MAX TORQUE	9 NM
FRONT SUSPENSION	Hydraulic Telescopic fork
REAR SUSPENSION	SPRING WITH HYDRAULIC CYLINDER SHOCK ABSORBER
Kerb Weight ( With Battery)	56kg
STARTING	Self-Start
WHEEL & TYRE	Front & Rear : Tube Tyre 3.00-10/ Alloy

DIMENSION

OVERALL DIMENSION (MM)	1801X685X1150 mm
WHEEL BASE (MM)	1250 mm

BODY FRAME

CHASSIS	Clad with steel metal
BODY	ABS/ Steel
SEATING CAPACITY	2 PERSON
CARRY HOOK	YES
CROME FINISH STEEL GUARD	YES
FLOOR MAT	YES

ELECTRIC SYSTEMS

LIGHT	12 V HEADLIGHT LED; FRONT TURNINGLED; TAIL LIGHT LED ETC.
HORN	ELECTRIC HORN, 12V
LOW BATTERY INDICATOR	Yes
DC TO DC CONVERTER	48 V TO 12 V
GPS	YES (OPTIONAL)
ELECTRICITY CONSUMPTION	1.2 UNITS
ANTI THEFT ALARM	YES
BMS	YES
REGENERATIVE BREAKING SYSTEM	YES
MOBILE CHARGER	YES
ANDROID TOUCH SCREEN DISPLAY	CAN BE EMBEDDED
DIGITAL METER	INCLUDING SPEEDOMETER, MILEAGE, VARIOUS INDICATORS INCLUDING : HEADLIGHT, TURNING LIGHT, PARKING, EMERGENCY LIGHT, REVERSE
